Description

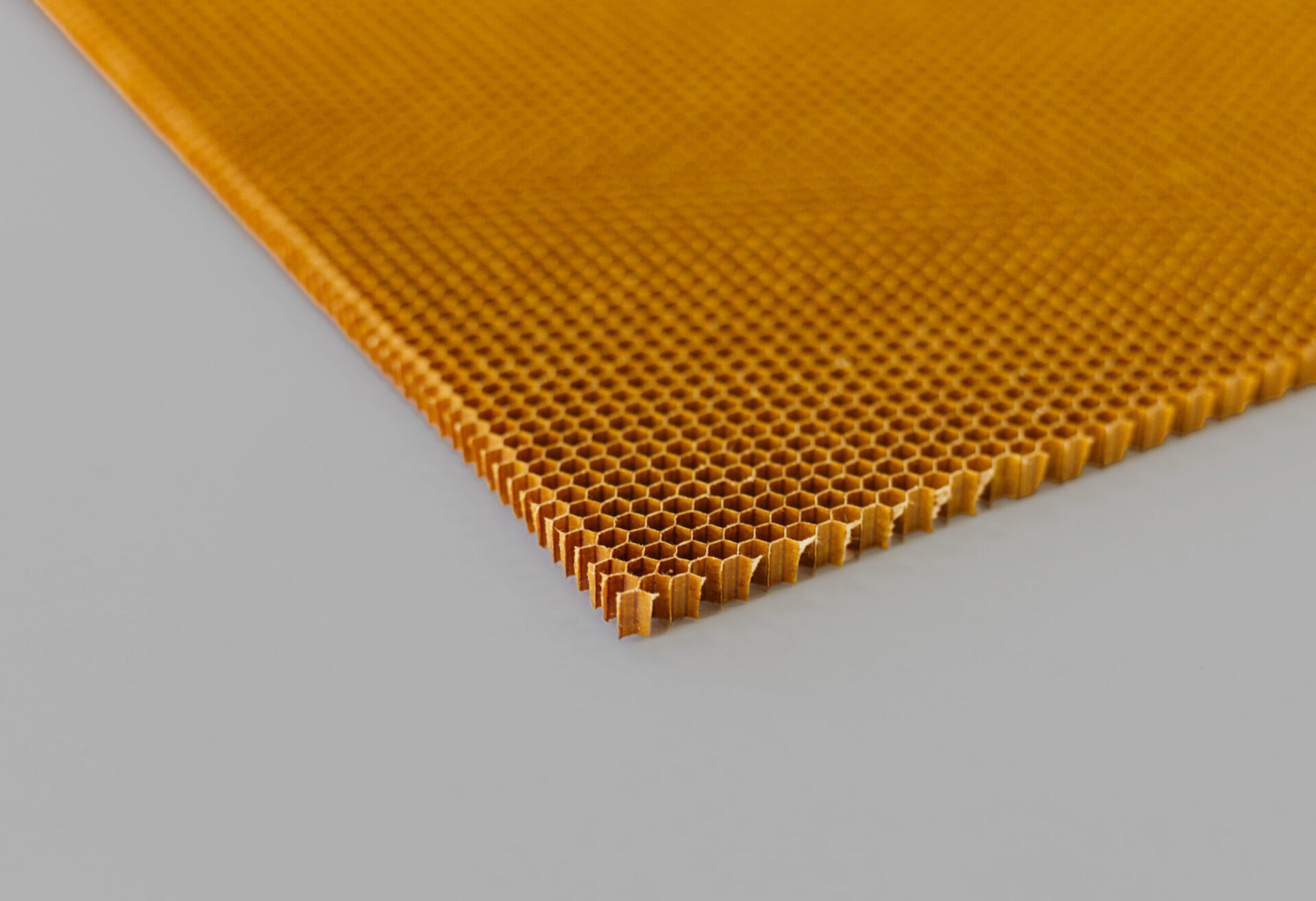

PN1 commercial grade aramid fiber honeycomb exhibits outstanding flammability properties. It is manufactured from Meta-Aramid paper and coated with a heat resistant phenolic resin.
Applications
PN1 aramid fiber honeycomb uses include boat hulls, auto racing bodies, train car panels, ship panels, ground transportation structures, military shelters, ground antennas and special purpose panels.
Features:
- High strength-to-weight ratio
- Corrosion Resistant
- Excellent dielectric properties
- Thermally insulating
- High toughness
- Excellent creep and fatigue performance
- Good thermal stability
- Densities as low as 2.0 lb/ft3 (32 kg/m3)
- Over-expanded cell configuration suitable for forming simple curves
- Compatible with most adhesives used in sandwich composites
- Long shelf life. The mechanical properties are maintained for 10 years minimum if not exposed to moisture, weather or any normal hazard.
Availability
PN1 aramid fiber honeycomb is available in sheets, blocks or cut to size pieces in both regular hexagonal and over expanded (OV) cell configurations.
Cell Sizes: | 1/8″ – 1/4″ |
Densities: | 2.0 pcf – 6.0 pcf |
Sheet "Ribbon" (L): | 48″ typical |
Sheet "Transverse" (W): | 96″ typical |
Tolerances: | Length: +3″, -0″ Width: +6″, -0″ Thickness: ±.006″ (under 2″ thick) Density: ±15% Cell Size: ±15% |
Note:
Special dimensions, sizes, tolerances and specifications can be provided upon request.
