Description

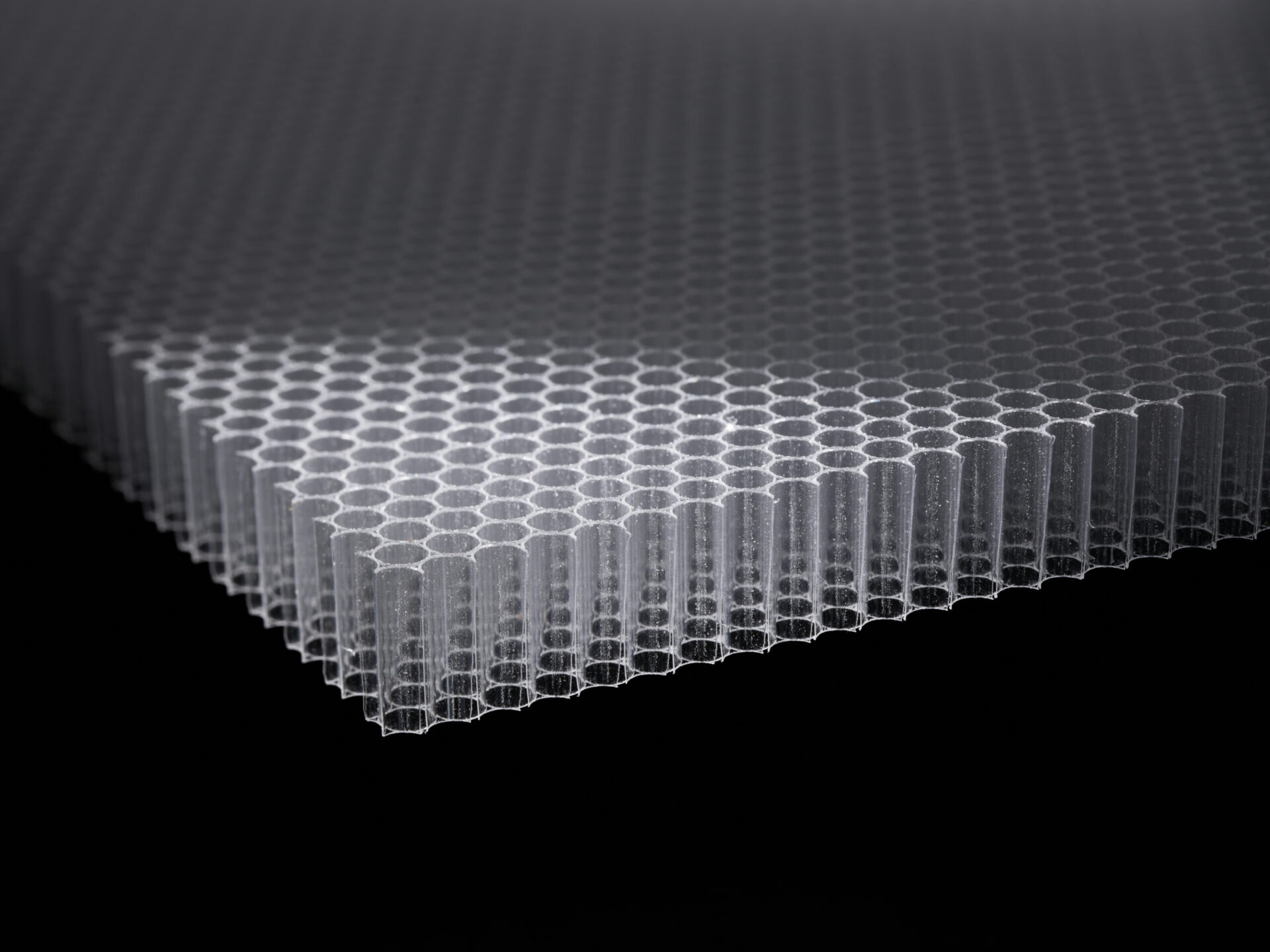

Honeycomb with an isotropic cell configuration providing near equal shear properties in all directions. Each cell is tubular and is inherently stable
Applications
PC2 Polycarbonate Honeycomb uses include Wind Tunnels, Air and Water Flow Medium, Light Grilles, Sandwich Cores, Radomes – Antennae and EMI/RFI Sheilding
Features:
- Excellent dielectric properties
- Good thermal and electric insulator
- Conductive grades available
- Fire resistant
- Corrosion resistant
- Fungi resistant
- Sandwich skins can be melted to core
- Use temperature below 200°F
- Small cell sizes at high densities
- Available transparent and in colors
Availability
PC2 Polycarbonate Honeycomb is available in the following standard dimensions.
Cell Sizes: |
Nominal 1/8″, 1/4″, 3/8″ and 1/2″ (other cell sizes on request) |
Densities: |
3.5 pcf – 12.0 pcf (in matched and certain cell sizes) |
Tolerances: |
Length: ±.125″ Width: ±.125″ Thickness: ±.02″ Density: ±10% |
Note:
Special colors, dimensions, cell sizes, shapes, tolerances and mechanical properties can be provided upon request.
