Description

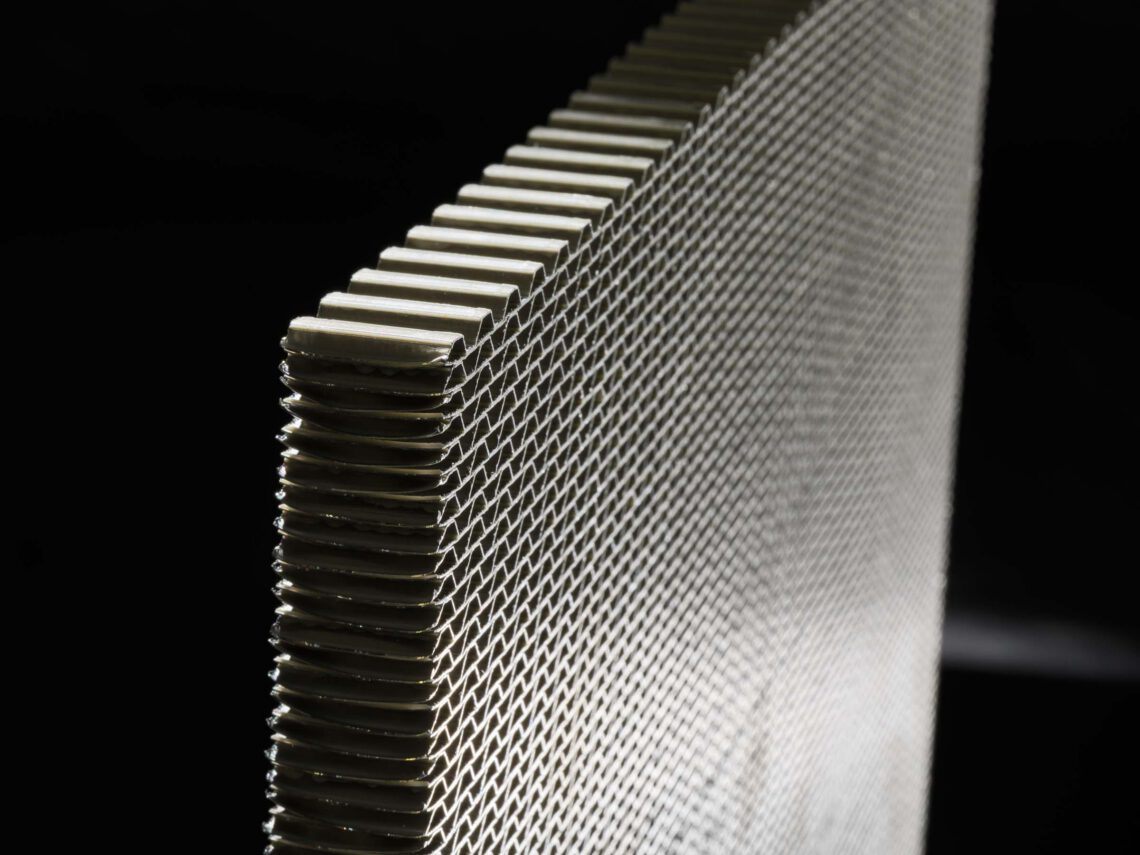

PAHD-XR1 5052 corrugated aerospace grade aluminum honeycomb is a high density core material which offers superior strength over expanded aluminum honeycomb. PAHD-XR1 5052 honeycomb is made from 5052 aluminum alloy foil and can be tested in accordance with customer requirements.
Applications
PAHD-XR1 5052 honeycomb uses include engine nacelles, roll formed applications, energy absorption, anchor points, reinforcements, and other applications where light weight high strength materials are required. PAHD-XR1 5052 honeycomb is suitable for applications where materials with high compression and shear values are required.
Features:
- Excellent moisture and corrosion resistance
- Elevated use temperature
- High thermal conductivity
- Material can be perforated
- Flame resistant
- Fungi resistant
- Recyclable
- Long shelf life. The mechanical properties referenced are maintained for 15 years minimum if not exposed to moisture, weather or any normal hazard.
Availability
PAHD-XR1 5052 honeycomb is available in three forms: untrimmed sheets, cut to size sheets, and machined components. Density is dependent on cell size and configuration.
Cell Sizes: |
1/8″ – 3/16″ |
Densities: |
14.5 pcf - 55.0 pcf |
Sheet "Ribbon" (L): |
100″ max |
Sheet "Transverse" (W): |
31" max |
Sheet Thickness (T): |
10.5" max |
Tolerances: |
Length: +2″, -0″ Width: +2″, -0″ Thickness: ± .010″ (under 4″ thick) |
Note:
Special dimensions, sizes, tolerances, and CNC machining can be provided upon request.
