panel details

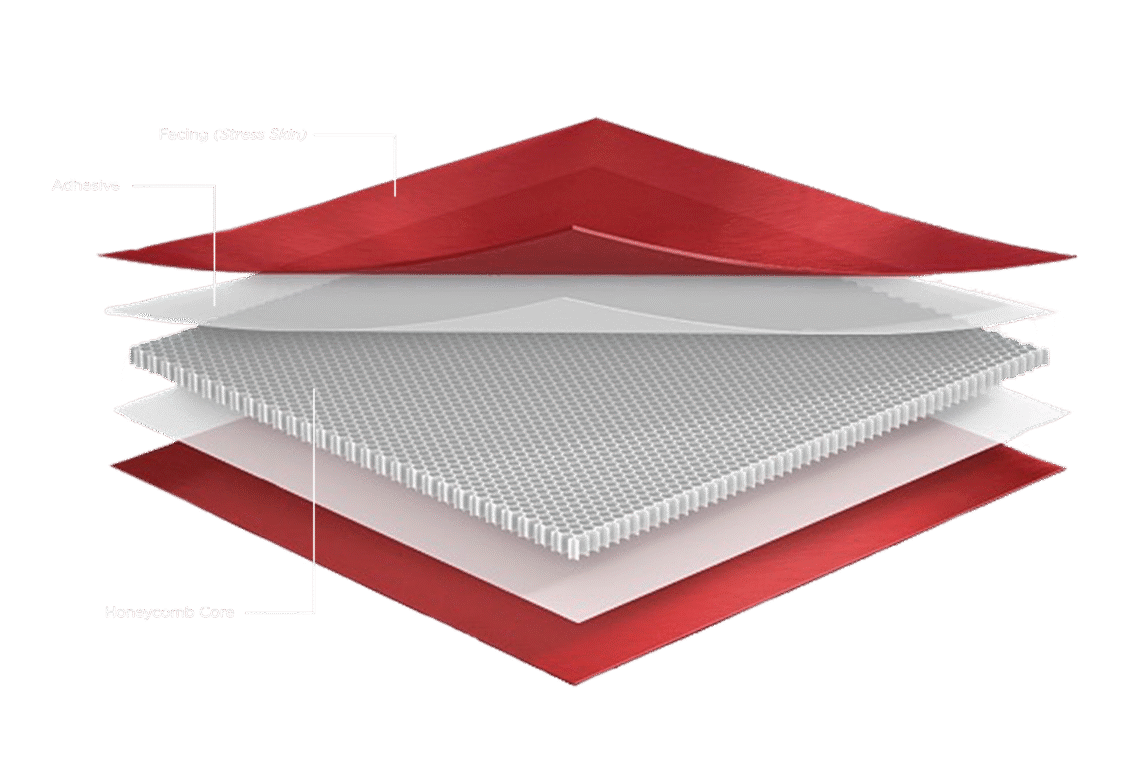

Typically five layers: Skin, adhesive, core, adhesive, skin. Materials with high tensile and compression strength are best suited to being skins, such as aluminum, steel, and fiberglass. Adhesive varies widely by application: high strength, high temp, low temp, etc. A variety of honeycomb and other cores are available per design requirements.
panel strength
Honeycomb panel strength works much like an I-Beam, with the core being the vertical element and the facing being the flange, working together to create high shear strength. Like an I-beam, greater distance between skins (thicker core) will create greater strength.
- High strength skin reduces risk of tensile failure.
- Many cells reduce risk of buckling failure.
- Smaller cells reduce risk of climbing crush or peel failures.
- Core orientation and density can reduce shear failure.

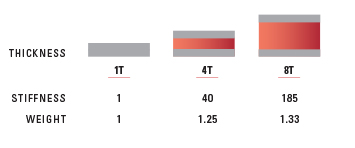

Stiffer and Lighter than Single Sheet Laminate
The stiffness of Plascore Honeycomb Panels allows the end user to utilize less material and reduce weight. Stiffness increases exponentially compared to single sheet material. The use of honeycomb core(s) creates a dramatic increase in stiffness with very little weight gain.
light, strong, tough,
cost-effective

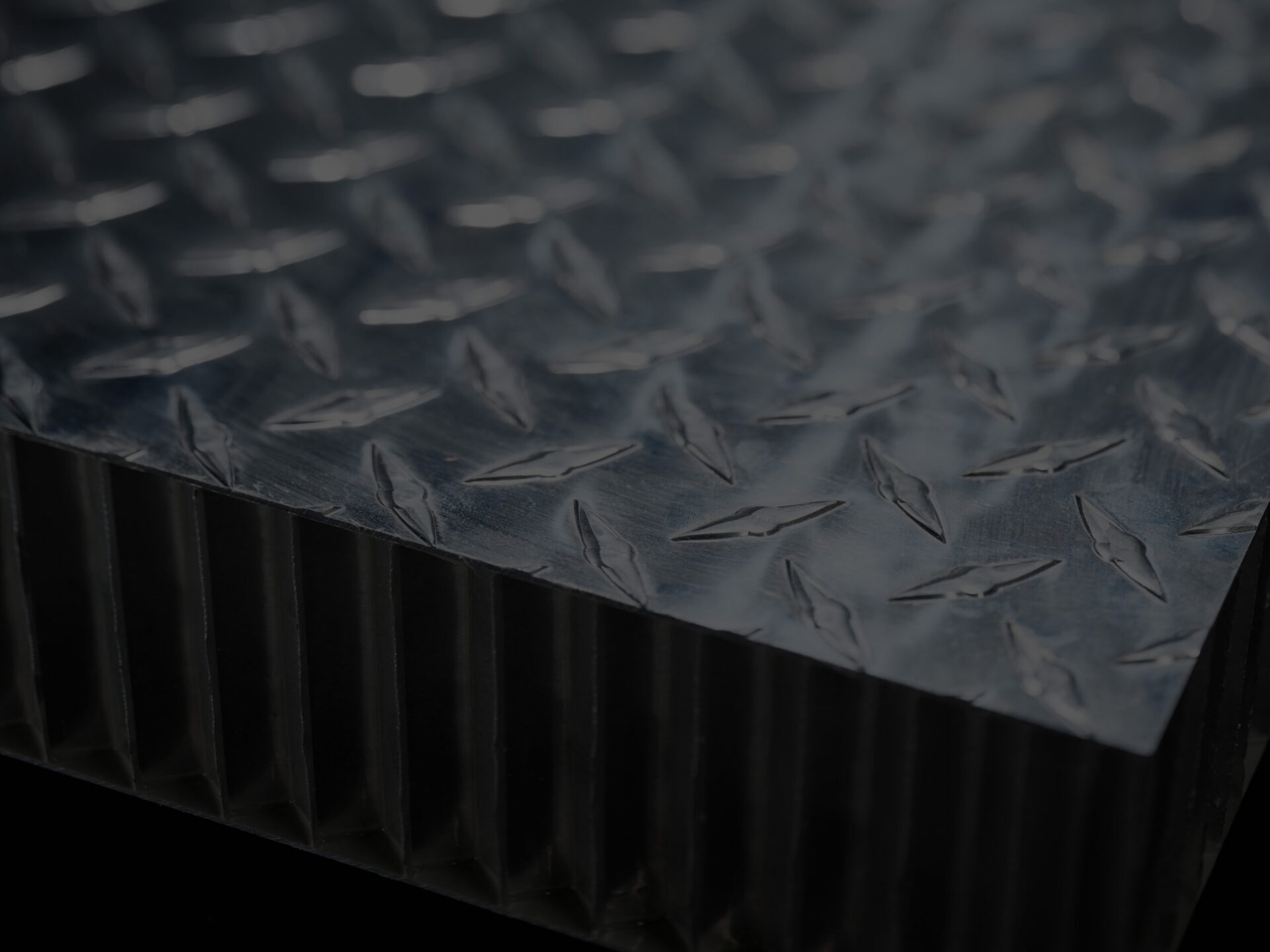

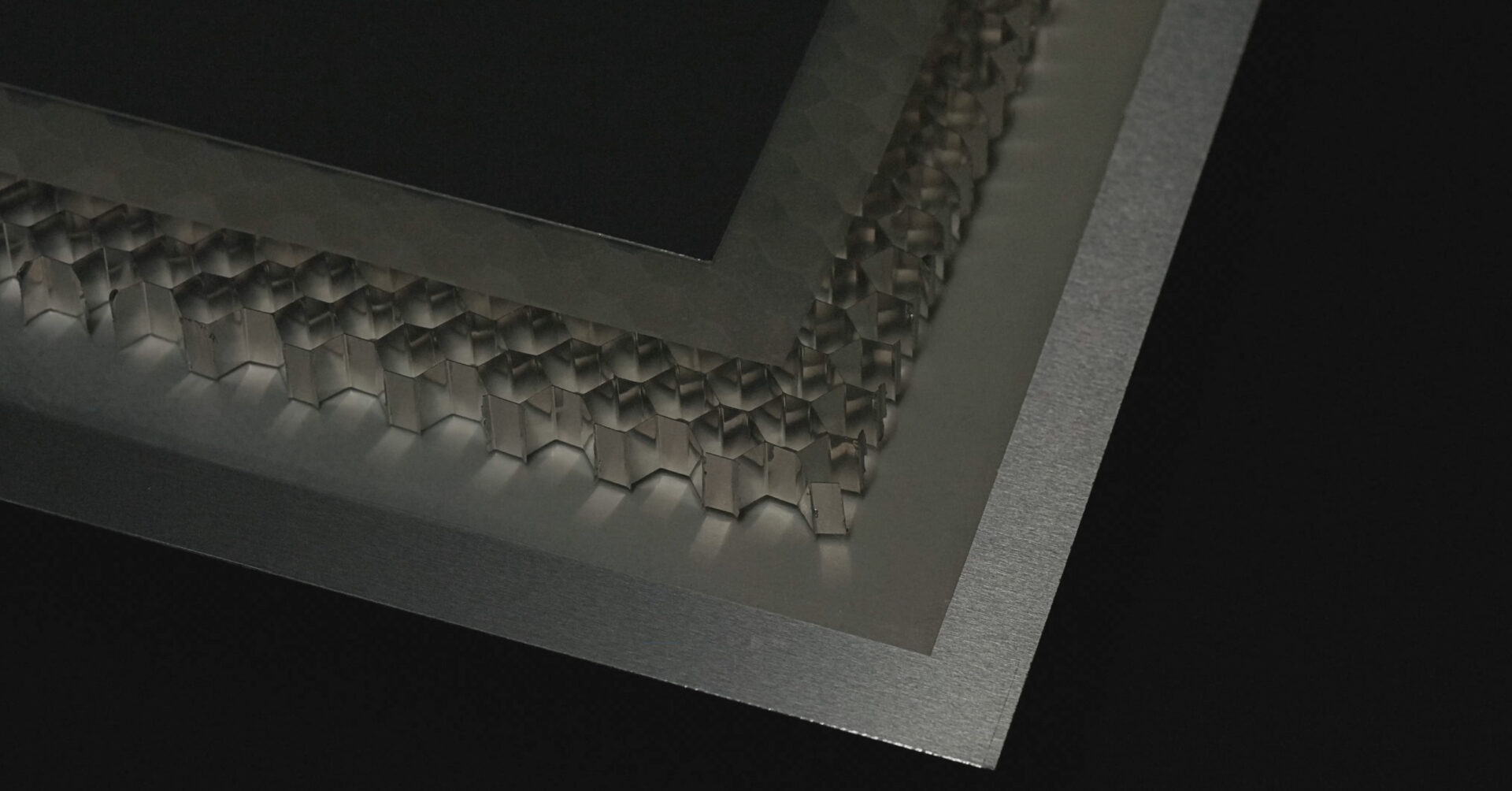

Available in a wide range of sheet sizes and facings, our honeycomb panels are designed for ease of use in many common applications and processes. They can be engineered to meet specific requirements for strength and stiffness. Plascore Honeycomb Panels are used in many situations that require elevated core shear, compression, and adhesion performance.
Solutions That Scale Across Industries
From Marine and Military to Aerospace, Transportation, and Architecture, we deliver tailored solutions that span from early prototyping to complex manufacturing. At every stage, our team provides comprehensive support—including engineering expertise, logistics coordination, and full program management.
